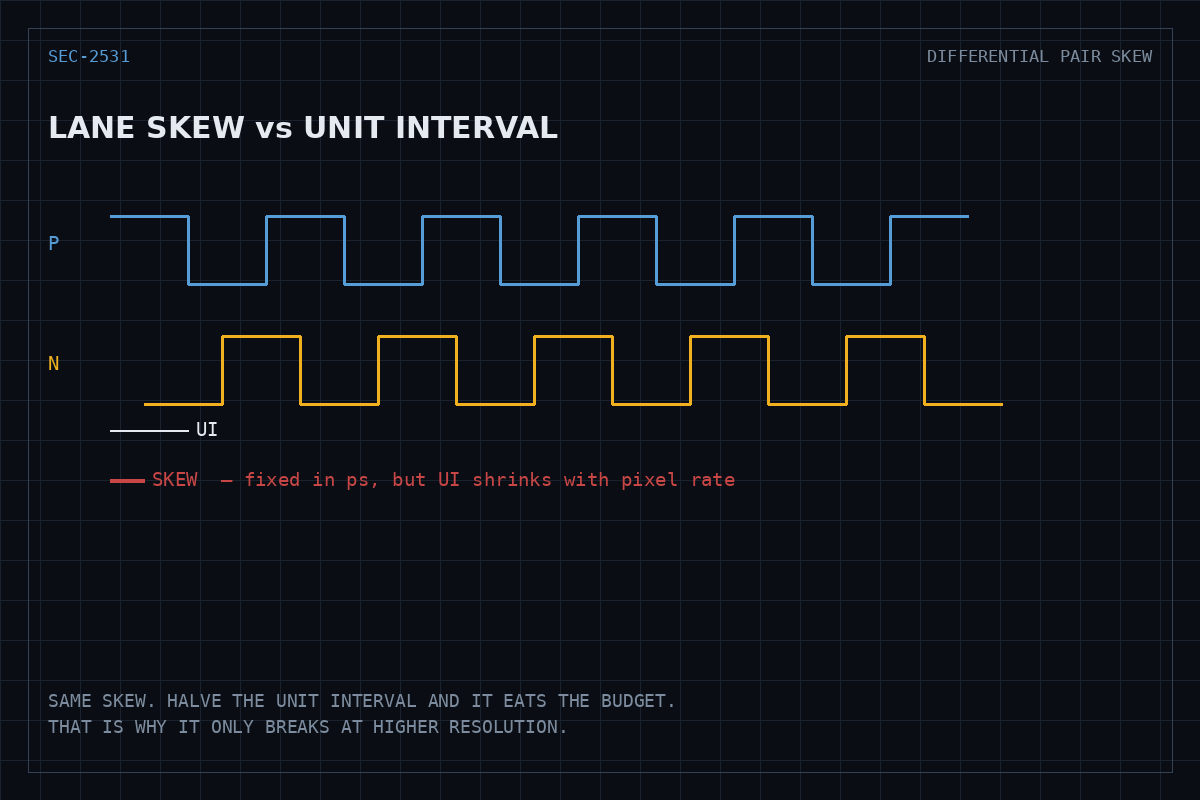

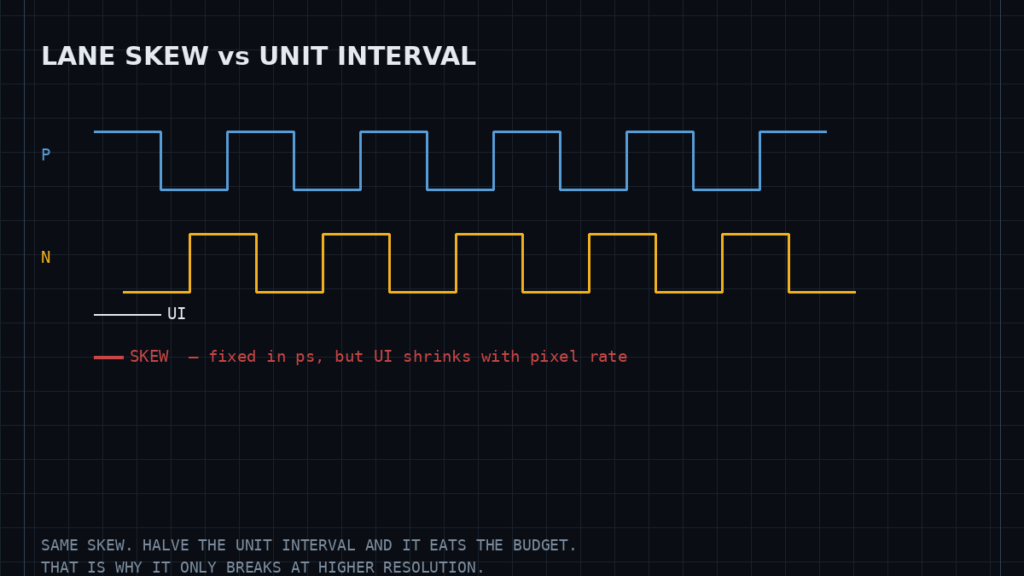

The Physics of Timing Skew
In high-speed serial architectures like MIPI CSI-2, the integrity of the data stream is governed by the precise synchronization of differential pairs. When these traces are not perfectly matched in electrical length, the arrival time of the positive (P) and negative (N) signals diverges. This phenomenon, known as intra-pair skew, induces phase shifts that lead to destructive interference and bit-error rate (BER) escalation. In high-resolution video streams, this manifests as frame dropping, pixel tearing, and total synchronization loss.
The propagation delay is influenced by the dielectric constant of the PCB substrate and the geometry of the trace. Even a few millimeters of discrepancy can cause the signal to cross the receiver threshold at different times, effectively closing the data eye. To maintain a stable 1.5 Gbps stream, tolerances must be kept within the picosecond range.
| Interface Standard | Max Data Rate | Skew Tolerance (ps) | Common Application |
|---|---|---|---|
| MIPI CSI-2 | 1.5 Gbps | 10 ps | 4K Smart Doorbell/Vision |
| LVDS | 650 Mbps | 50 ps | Standard Displays |
| USB 3.0 | 5.0 Gbps | 5 ps | High-Speed Data/Peripherals |
[TX Driver] --(P)--> [Trace 1] --|
|-- [RX Receiver]
[TX Driver] --(N)--> [Trace 2] --|
Diagnostic Indicators and Hardware Verification
When debugging vision systems, we rely on a combination of diagnostic LEDs (if available via firmware status registers) and physical layer probing. The following table outlines standard diagnostic responses observed during deep-dive hardware debugging sessions.
| Error Category | Diagnostic LED Pattern | Root Cause Analysis | Recommended Action |
|---|---|---|---|
| Clock Lane Lock | Solid Red | Termination Mismatch | Verify 100 Ω differential termination |
| Data Lane Sync | Blinking Yellow | Trace Length Mismatch | Check via stubs and length matching |
| Voltage Rail Sag | Fading Amber | Decoupling Capacitor Failure | Inspect ESR of local bypass caps |
| Packet CRC Error | Rapid Flashing Red | EMI/Ground Bounce | Review signal return paths |
Troubleshooting Procedure: A Forensic Approach
1. TDR Analysis: Use a Time Domain Reflectometer to locate impedance discontinuities. We are looking for reflections caused by connector interface mismatches or improper via transitions. If the impedance profile shows a spike, the trace geometry or the connector seating is suspect.
2. Eye Diagram Measurement: Connect a high-bandwidth oscilloscope (minimum 2 GHz recommended) directly to the data lanes using low-capacitance active probes. While the camera is streaming, capture the eye diagram. A closed eye indicates excessive jitter or attenuation. Compare the measured rise and fall times against the MIPI specification sheet.
3. Termination Adjustment: Ensure that the 100 Ω differential termination is physically located as close to the receiver pins as possible. Long stubs between the termination resistor and the receiver input create a resonant structure that degrades high-frequency components.
4. Firmware Analysis & Serial Debug: Utilize a serial debug header to dump the MIPI CSI-2 controller registers. Check the status of the D-PHY layer. If the register indicates a ‘Stop State’ or ‘Escape Mode’ error, the physical layer is failing to transition correctly into High-Speed (HS) mode.
FAQ: Solving Signal Integrity Challenges
What is the most common cause of eye-diagram closure?
Usually, it is parasitic capacitance at the connector interface or excessive via stubs on the PCB layout. In high-speed designs, every via acts as a potential impedance discontinuity. We recommend back-drilling high-speed vias to minimize stub length.
How do I differentiate between a firmware bug and a physical layer issue?
If the error occurs sporadically regardless of cable movement or temperature, it is likely a firmware or driver initialization issue. If the error is sensitive to physical manipulation of the ribbon cable or changes in ambient temperature, the issue is almost certainly physical (e.g., solder joint stress or trace impedance drift).
Can a multimeter be used to debug high-speed lanes?
A standard multimeter is insufficient for high-speed signal analysis. While it can verify continuity and DC resistance, it cannot detect the high-frequency reflections or timing skews that plague MIPI interfaces. You must use an oscilloscope or a dedicated protocol analyzer.
Conclusion
Precision routing is non-negotiable for high-speed video backplanes. When working with sub-nanosecond timing requirements, the PCB layout must be treated as a microwave circuit. By following these rigorous diagnostic steps—from TDR analysis to firmware-level register inspection—engineers can isolate and resolve the most elusive timing skews. Sotiris, Senior IoT Systems Architect.
